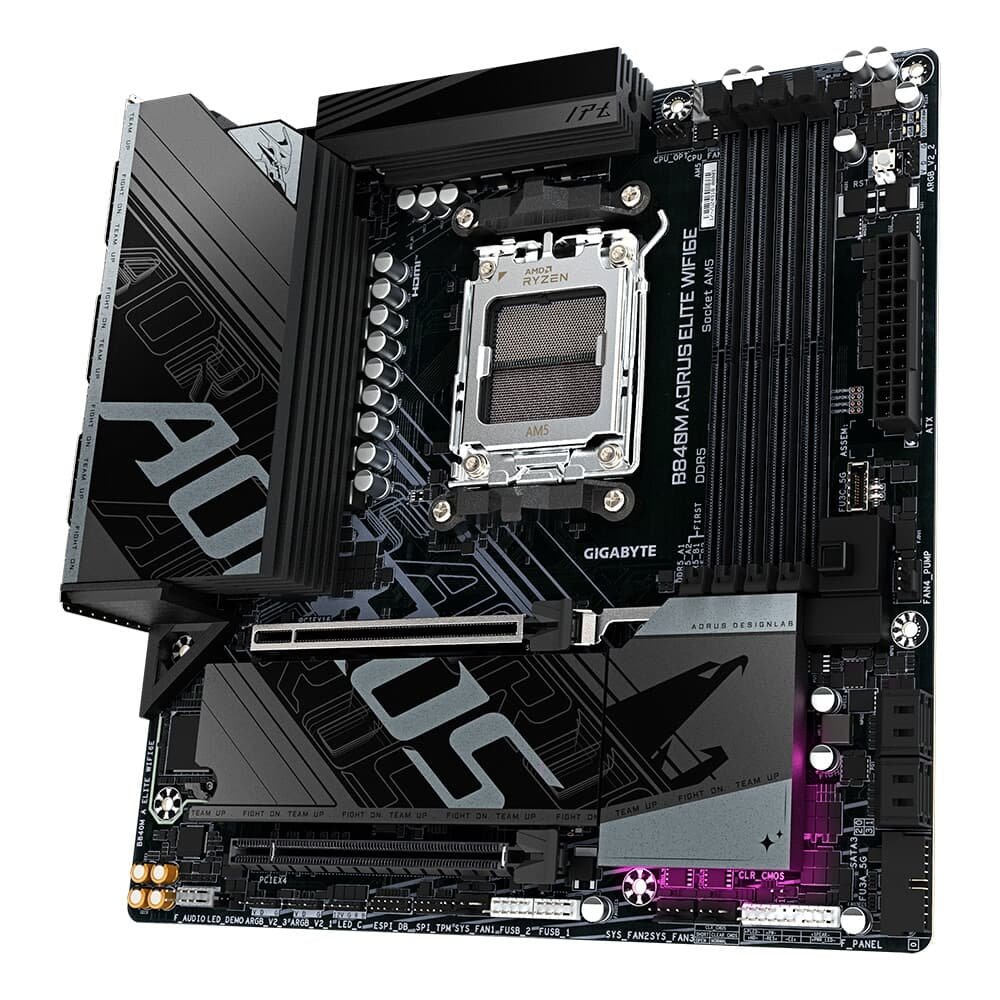

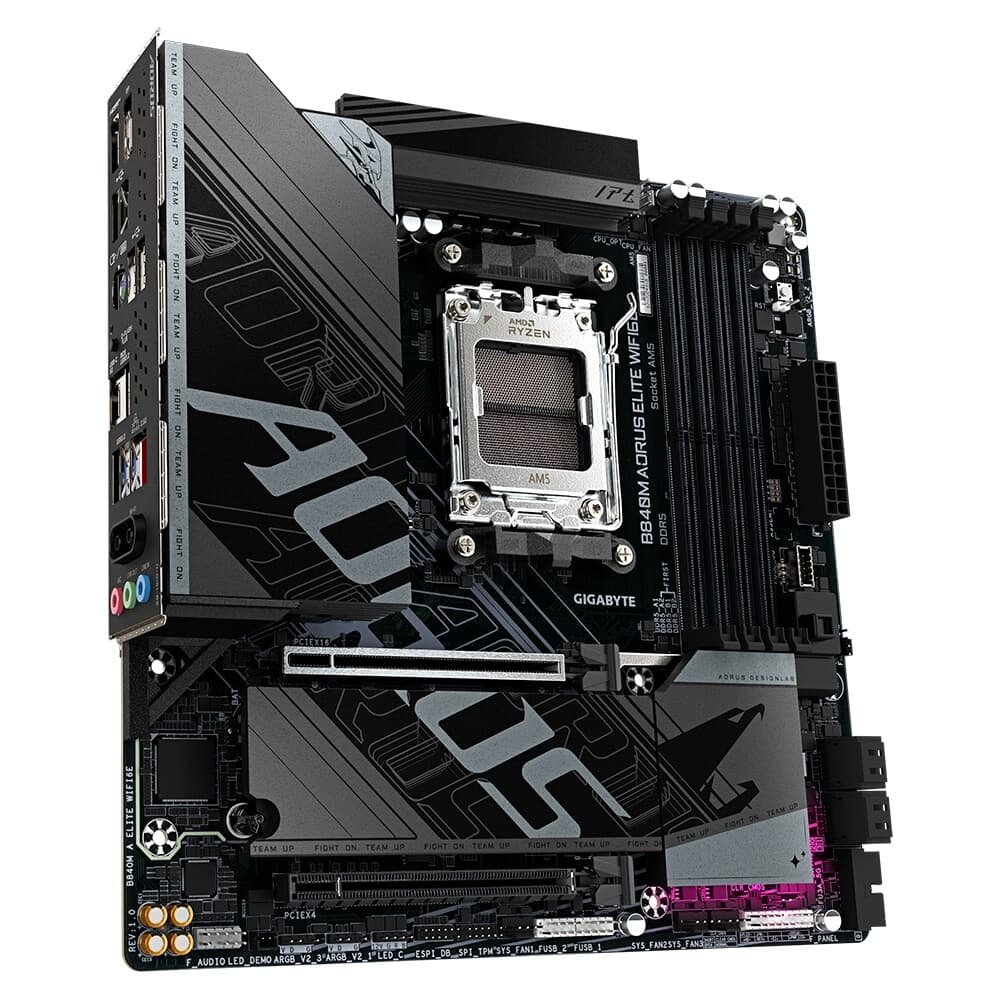

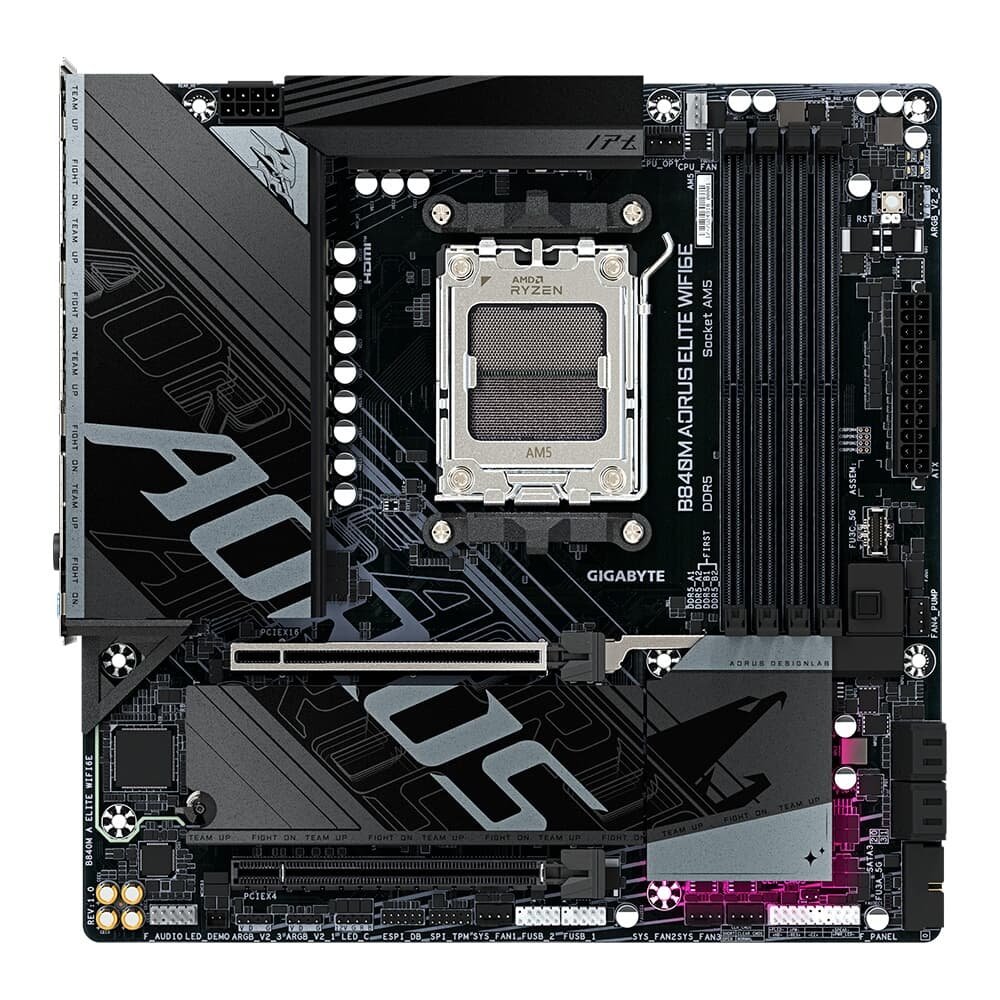

Placa-Mãe Gigabyte B840M AORUS ELITE, AMD AM5, mATX, DDR5, Wi-Fi 6E, Bluetooth 5.3 - B840M AORUS ELITE WIFI6E
Potência e Desempenho para a Nova Geração
Eleve o nível do seu setup com a Placa-Mãe Gigabyte B840M AORUS ELITE. Projetada para extrair o máximo de performance dos processadores AMD Ryzen™ Séries 9000, 8000 e 7000, esta placa é a base perfeita para um PC gamer de alta performance. Com suporte para memórias DDR5 de até 8200(O.C) MT/s, você terá velocidade de sobra para rodar os jogos mais exigentes e executar tarefas pesadas sem nenhum gargalo.
Conectividade Ultra Rápida e Sem Fios
Diga adeus ao lag e às conexões instáveis. A B840M AORUS ELITE vem equipada com a tecnologia Wi-Fi 6E e Bluetooth 5.3, oferecendo as mais altas velocidades de conexão sem fio e menor latência para suas partidas online e streaming. Além disso, a porta Realtek® 2.5GbE LAN garante uma conexão cabeada robusta e extremamente rápida, ideal para quem busca a máxima estabilidade.
Armazenamento Veloz e Expansão Inteligente
Desbloqueie o verdadeiro potencial dos seus SSDs com múltiplos conectores M.2 PCIe 4.0. Carregue seus jogos e sistemas operacionais em um piscar de olhos e desfrute de transferências de arquivos ultra rápidas. A placa também oferece slots de expansão PCIe 4.0 e diversas portas SATA, garantindo flexibilidade para futuras atualizações e a instalação de todos os seus componentes essenciais.
Construída para Durar e Impressionar
A linha AORUS ELITE é sinônimo de durabilidade e qualidade. Com um design robusto e componentes de alta performance, esta placa-mãe foi desenvolvida para suportar longas sessões de uso intenso. O monitoramento inteligente de hardware e o controle preciso das ventoinhas através do GIGABYTE Control Center (GCC) garantem que seu sistema opere sempre na temperatura ideal, mantendo a performance e a estabilidade em qualquer situação.
Adquira o seu no Balão.info
ESPECIFICAÇÕES TÉCNICAS:
Características:
- Marca: Gigabyte
- Modelo: B840M AORUS ELITE WIFI6E
Especificações:
CPU:
- AMD Socket AM5, support for:
- AMD Ryzen™ 9000 Series Processors/
- AMD Ryzen™ 8000 Series Processors/
- AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset:
- AMD B840
Memória:
- Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Gráficos Onboard:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Áudio:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN:
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module:
Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Slots de Expansão:
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
* AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
*AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
*AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Interface de Armazenamento:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB:
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Conectores Internos I/O:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper

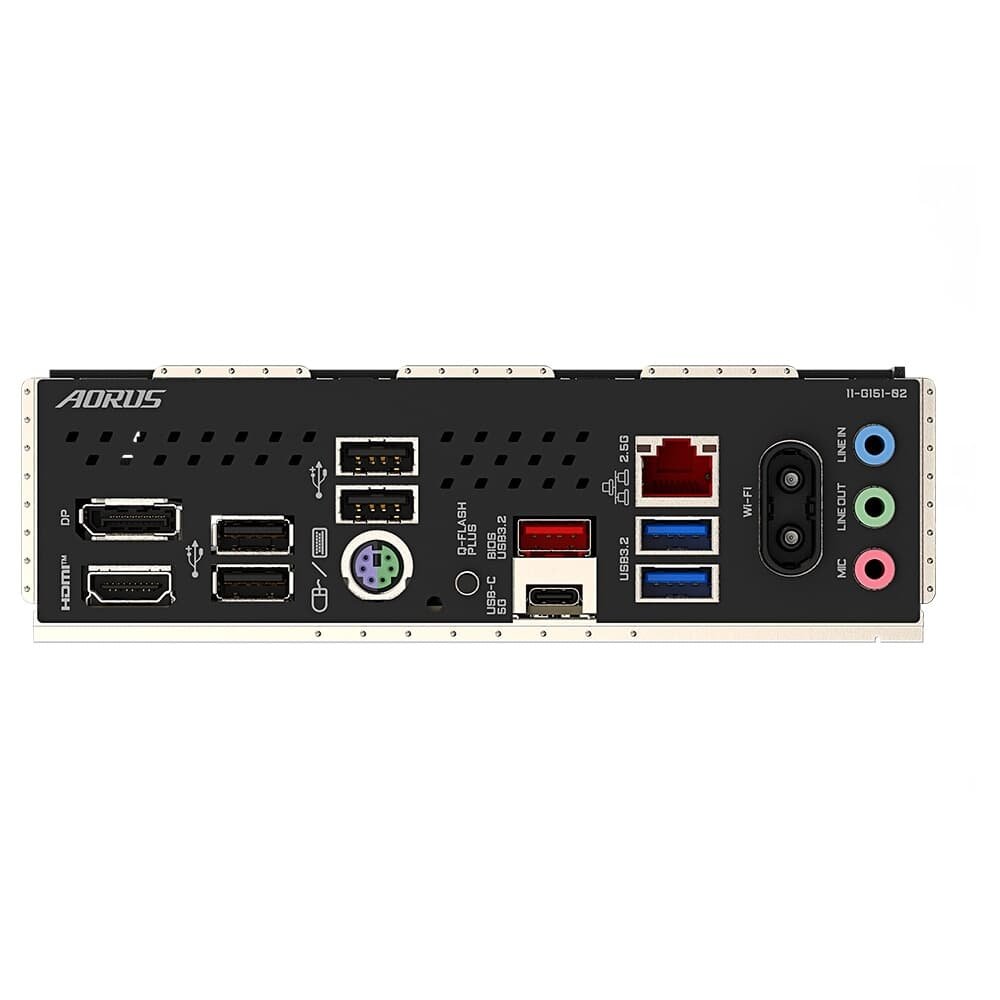

Conectores Painel Traseiro:
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x PS/2 keyboard/mouse port
- 1 x Q-Flash Plus button
- 4 x USB 2.0/1.1 ports
- 2 x USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 1 x RJ-45 port
- 2 x antenna connectors (2T2R)
- 3 x audio jacks
* Actual support may vary by CPU.
Controlador I/O:
- iTE® I/O Controller Chip
Monitoramento H/W:
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS:
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Exclusivas:
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash:
- Support for Q-Flash Plus
- Support for Smart Backup
Pacote de Software:
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Sistema Operacional:
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor:
- Micro ATX Form Factor; 24.4cm x 24.4cm
Conteúdo da Embalagem:
- Placa-Mãe Gigabyte
- 2x Cabos SATA

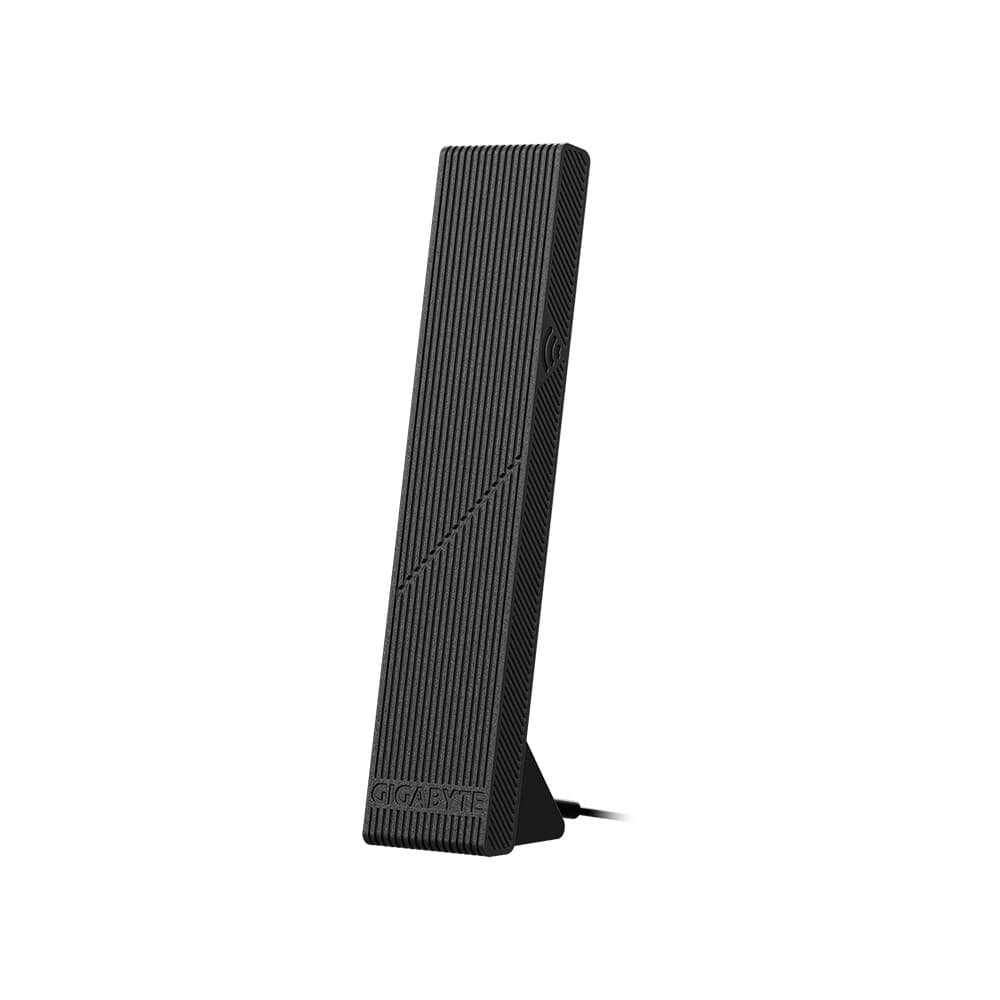

- 1x Antena Wi-Fi
- Manual do Usuário
- Guia de Instalação Rápida
Código Anatel:
202752204076
